Advanced Natural Fibre Composite Reinforcements

Woven and directional reinforcement materials developed for composite manufacturing across mobility, marine, sporting goods and industrial applications.

Explore Products Request a Sample

01 Woven 02 Biaxial 03 Unidirectional 04 Tapes

DESIGNED FOR COMPOSITES

One Fibre. Multiple Reinforcement Formats.

Different composite applications require different reinforcement architectures. Boom-Bio's product portfolio has been developed to provide engineers and manufacturers with material formats optimised for different manufacturing processes, structural requirements and surface finishes.

01 VIEW +

Manufacturing Compatibility

Compatible with established composite manufacturing processes.

01 CLOSE −

PROCESS

Designed to work within established composite manufacturing methods.

Suitable for processes including resin infusion, vacuum bagging and hand lay-up.

02 VIEW +

Structural Performance

Reinforcement architectures designed for different load paths and engineering requirements.

02 CLOSE −

STRUCTURE

Reinforcement formats developed around the structural needs of the part.

Fibre orientation and material architecture can be selected according to load direction and component geometry.

03 VIEW +

Surface Quality

Material options balancing structural performance with aesthetic finish.

03 CLOSE −

FINISH

Material options for both visible and concealed composite surfaces.

Different constructions balance reinforcement performance with surface texture and visual quality.

04 VIEW +

Material Efficiency

Engineered reinforcement formats designed around efficient fibre utilisation.

04 CLOSE −

EFFICIENCY

Fibre positioned where it contributes most effectively to the component.

Reinforcement formats are selected to reduce unnecessary material use while supporting manufacturing performance.

Hover or select a principle to explore the engineering approach.

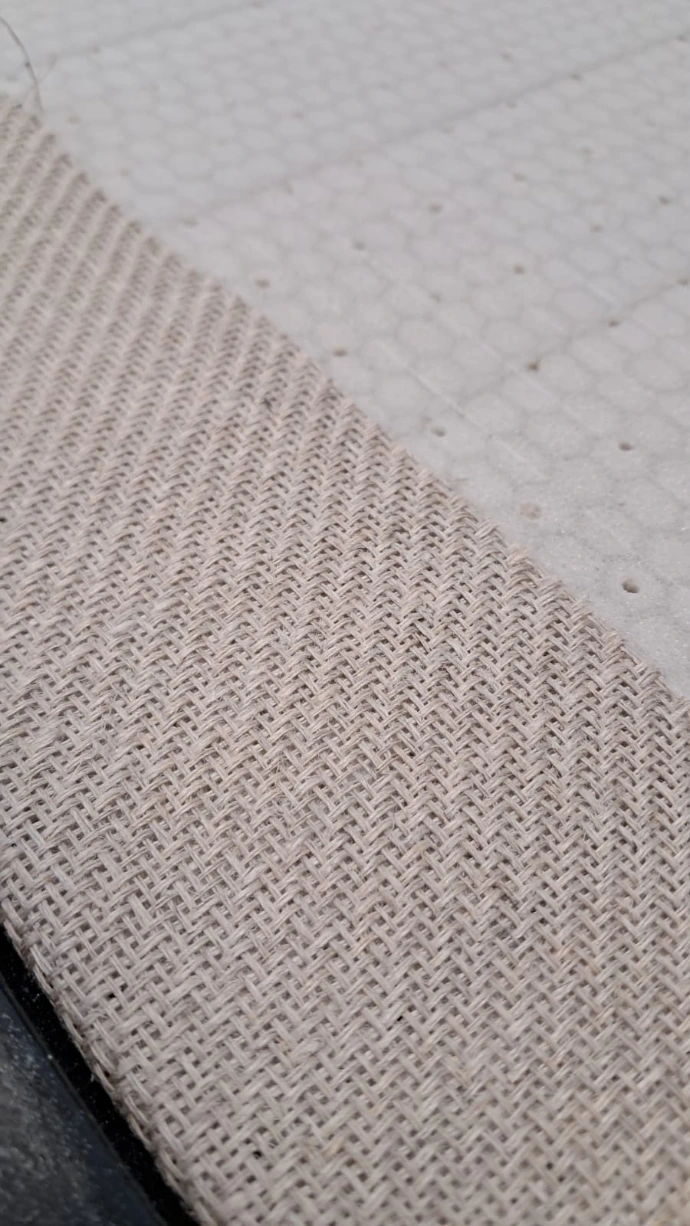

Boom-Bio 2 by 2 twill woven natural fibre reinforcement

2×2 Twill Woven Material 200–400 GSM

01 Woven Reinforcement

Woven Material 2×2 Twill · 200–400 GSM

A balanced woven natural fibre reinforcement offering good drape, consistent coverage and a distinctive visible surface. Available in a range of weights for different component and design requirements.

Format

Balanced 2×2 twill woven fabric

Available Weights

200–400 GSM

Manufacturing

Hand Lay-up; Resin Infusion & VARTM .

Key Characteristic

Balanced reinforcement in two directions with good surface appearance and handling.

Request a Sample Discuss Application Data Sheet Coming Soon

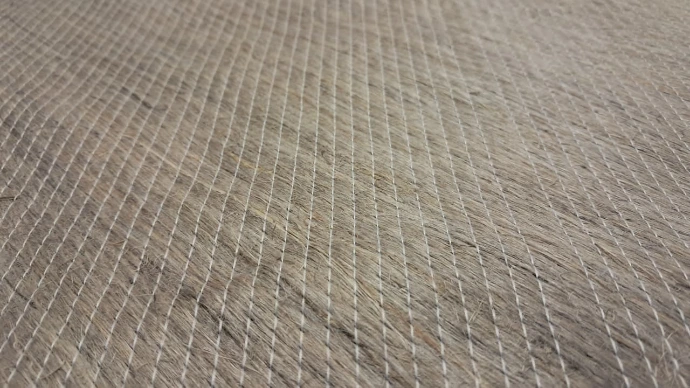

Boom-Bio biax natural fibre reinforcement

Biaxial Material 300 GSM

02 Directional Reinforcement

Biax Material 300 GSM

A multi-directional reinforcement format designed to distribute fibre across two principal directions. It is intended for components where loads are carried across more than one axis.

In partnership with Fuse Composites GmbH

Format

±45° Biaxial directional reinforcement

Material Weight

300 GSM

Manufacturing

Hand Lay-up; Resin Infusion & VARTM

Key Characteristic

Directional fibre placement without the interlacing associated with conventional woven materials.

Discuss This Material

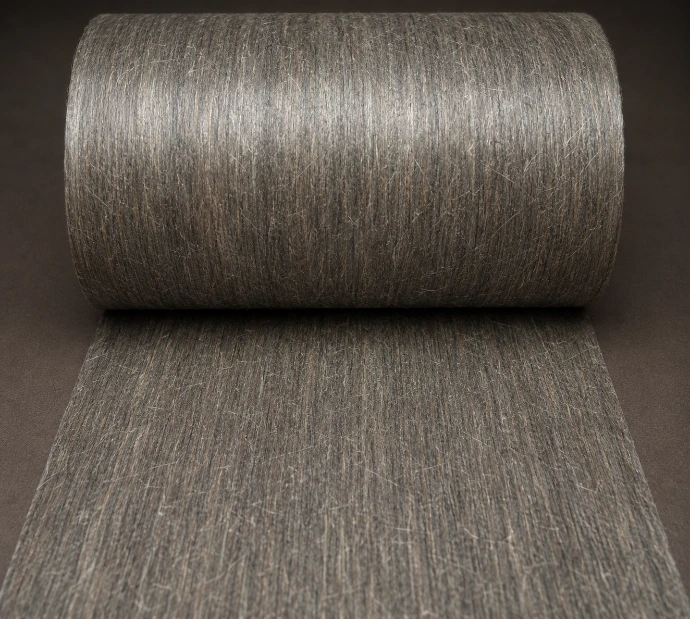

Boom-Bio unidirectional natural fibre reinforcement

Unidirectional Material 200 GSM

03 Directional Reinforcement

Unidirectional Material 200 GSM

A reinforcement format in which most fibres are aligned in one direction. This allows material to be placed according to the main load path within a component.

In partnership with Fuse Composites GmbH

Format

Predominantly unidirectional natural fibre reinforcement

Material Weight

200 GSM

Manufacturing

Hand Lay-up; Resin Infusion & VARTM

Key Characteristic

Concentrates fibre reinforcement along the direction where it is most needed.

Discuss This Material

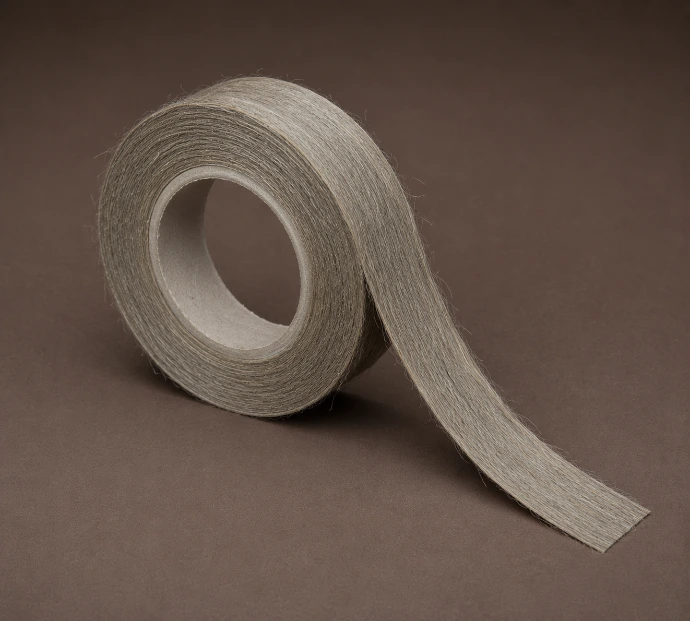

Boom-Bio unidirectional natural fibre reinforcement tape

Unidirectional Tape Localised Reinforcement

04 Local Reinforcement

Unidirectional Tapes Targeted Fibre Placement

Narrow unidirectional reinforcement strips designed for adding fibre exactly where a component requires additional support, without adding full layers across the entire surface.

In partnership with Fuse Composites GmbH

Format

Narrow unidirectional reinforcement tape

Available Widths

Application-dependent formats under development

Manufacturing

Hand Lay-up; Resin Infusion & VARTM

Key Characteristic

Enables local reinforcement while limiting unnecessary material across the rest of the component.

Discuss This Material
